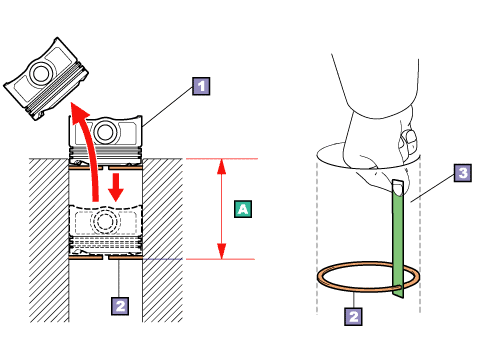

Piston |
|
|
Piston ring |
|
|
Thickness gauge |
|
|
|
|
2.
|
Piston ring end gap
|
| Use the piston to push the piston
ring into the cylinder, make the ring horizontal, and then use a thickness gauge
to take a measurement at the specified position, which is the position where the
ring wear is least. |
|
•
|
If this end gap is too large, compression pressure
will leak from the gap.
|
|
•
|
If this end gap is too small, when the piston
ring expands, its junction and/or the inner walls of the cylinder could be damaged
by contact of the end gap.
|
| |
| HINT: |
|
•
|
To measure the end gap under actual installation
conditions, insert the piston ring into the cylinder. |
|
•
|
Dimension  in the illustration
differs depending on the model. Refer to the Repair Manual. |
|
