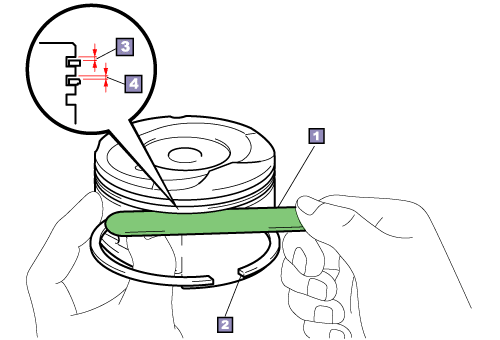

Thickness gauge |
|
|
New piston ring |
 |
Clearance of piston ring groove No.1 |
 |
Clearance of piston ring groove No.2 |
|
|
|
|
1.
|
Clearance of piston ring groove |
| Using a thickness gauge, measure
the clearance between the piston ring and the piston ring groove No.1, No.2. |
| |
| HINT: |
|
•
|
Too large clearance increases oil consumption.
It is also a cause of abnormal noise.
|
|
•
|
Too small clearance could cause damage to the
piston ring and/or the inner walls of the cylinder due to thermal expansion.
|
|
