Disassembly
Remove Piston
Click on the underlined sentence.

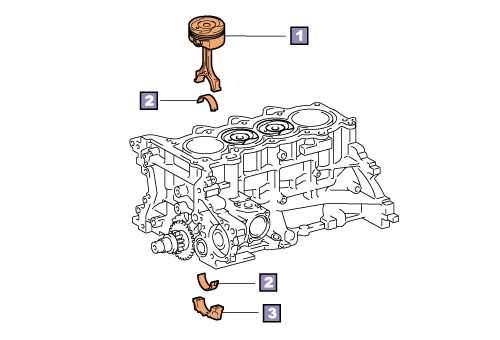

Piston with connecting rod
Bearing
Bearing cap
1.
Remove carbon from inner walls of cylinder
2.
Remove connecting rod bearing cap
HINT:
If it is difficult to remove the bearing cap, place 2 of the removed bolts in the bolt screw holes and wiggle them while removing the cap.
(4)
