Type of starter
|
| (1) |

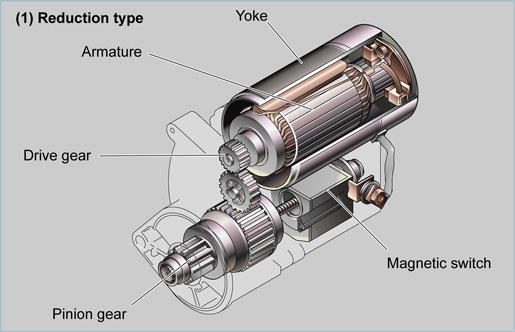

Reduction type
|
 |
The reduction type starter uses a compact high-speed motor
|
|
The reduction type starter maintains a similar torque output to a conventional starter motor by including a reduction gear set, however the rotational speed of the armature increases. |
|
The plunger of the magnetic switch acts directly on the pinion gear which is located on the same axis, causing it to engage with the ring gear |
|
|
|
