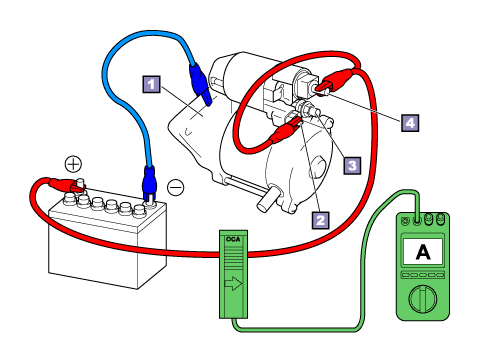

Starter body |
|
|
Terminal 50 |
|
|
Terminal C |
|
|
Terminal 30 |
|
|
|
| (6) |
Measure the current flowing into the starter. |
Specified current:
Refer to the relevant repair manual (eg. Less than 50 A at 11V)
|
| |
| NOTICE: |
| • |
During this test do not run the starter motor any longer that necesary, max 20 to 30 seconds. |
| • |
The current flowing in a no-load test differs depending on the starter motor. See the Repair Manual for the amperage in advance and be sure to use the appropriate current clamp and lead wire with sufficient capacity. |
|
