Reassembly.

Install Starter Brush Spring
Click on the underlined sentence.

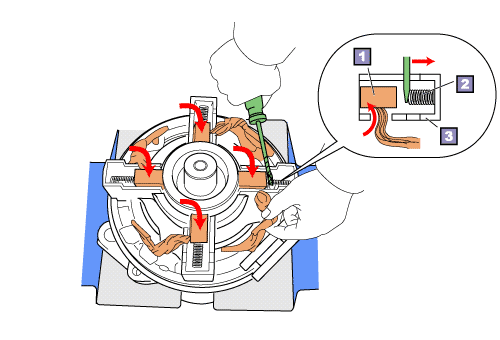

Brush
Brush spring
Brush holder insulator

1. Install starter armature assembly on starter yoke

2. Install starter brush spring

  (1) Hold the shaft of the armature in a vise wedged between aluminium plates or a cloth.

(2) Install the brush holder insulator.

(3) Install the spring on brush holder insulator.

(4) While compressing the spring, mount the brush on the brush holder insulator.
NOTICE:
  • While installing the brush take care that the spring does not jump out.
  • Using a screwdriver will make compressing the spring easier. Wind tape around the tip of the screwdriver.

(5) Install plate.

(53/3)
