Reassembly.

Install Starter Brush Spring
Click on the underlined sentence.

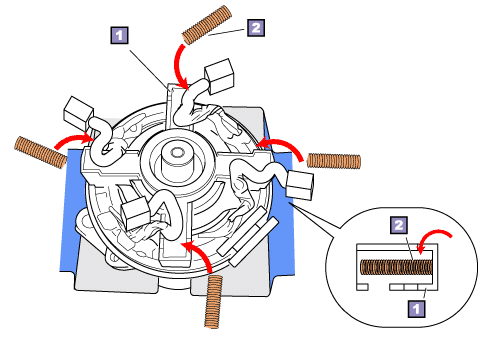

Brush holder insulator
Brush spring

1. Install starter armature assembly on starter yoke

2. Install starter brush spring

  (1) Hold the shaft of the armature in a vise wedged between aluminium plates or a cloth.

(2) Install the brush holder insulator.

(3) Install the spring on brush holder insulator.

(4) While compressing the spring, mount the brush on the brush holder insulator.

(5) Install plate.
