Inspection

Inspect Starter Armature Assembly
Click on the underlined sentence.
Commutator
Armature core
Armature coil
Armature shaft
No continuity

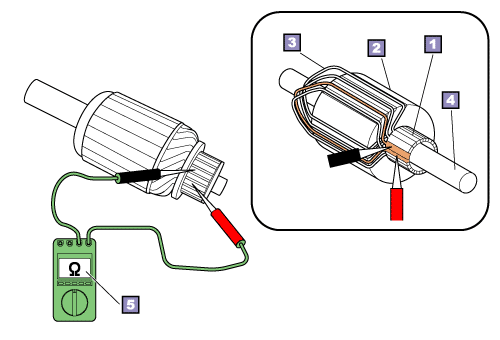

3. Starter armature insulation and continuity check
Using an electrical tester, conduct the following inspections.
• Insulation between the commutator and the armature core.

• Continuity between the segments of the commutator.
HINT:
Each segment of the commutator is connected via the armature coil. In a servicable armature there should be continuity between the segments of the commutator.

(42/1)
