Inspection

Inspect Starter Armature Assembly
Click on the underlined sentence.
Commutator
Armature core
Armature coil
Armature shaft
No continuity

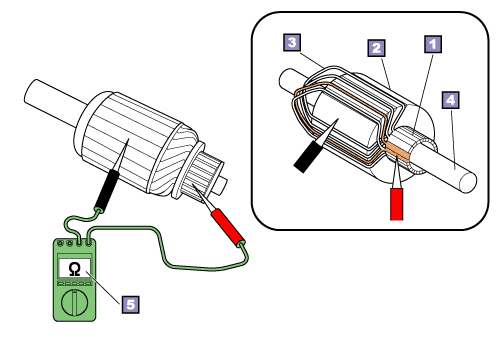

3. Starter armature insulation and continuity check
Using an electrical tester, conduct the following inspections.
•
 Insulation between the commutator and the armature core.
HINT:
Insulation is required between the armature core and armature coil, and the commutator is connected to the armature coil. In a servicable armature there should be no continuity between the commutator and the armature core.

• Continuity between the segments of the commutator.
