Disassembly.

Remove Starter Brush Spring
Click on the underlined sentence.

Plate
Claw

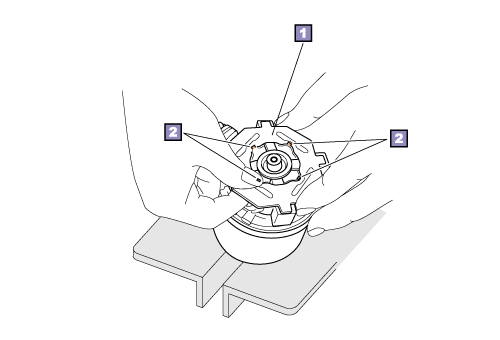

1. Remove starter brush spring

(1) Hold the shaft of the armature in a vise wedged between aluminium plates or a cloth.
  (2) Disengage the claws and remove the plate.
Release the claws with your fingers to remove the plate.
NOTICE:
Remove the plate gradually or the brush springs may fly out.

(35/1)
