Installation

Install Combination Meter
Click on the underlined sentence.

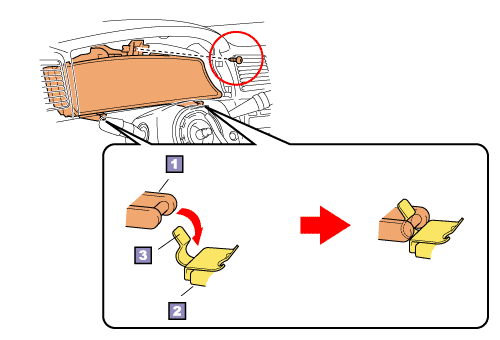

Combination meter side
Instrument panel side
Tip of the clip
  1. Install combination meter

  (1) Connect the connector at the back of the combination meter.

(2) Engage the two clips of the combination meter and install the screw.
2. Install combination meter cover

(22/1)
