Instrument Panel 15b

PRO TECHNICIAN

Inspection

Inspect Radio Receiver Assembly Connector

Click on the underlined sentence.

Connector

	1.	Electrical wiring routing

	2.	Connector list

	3.	System circuit

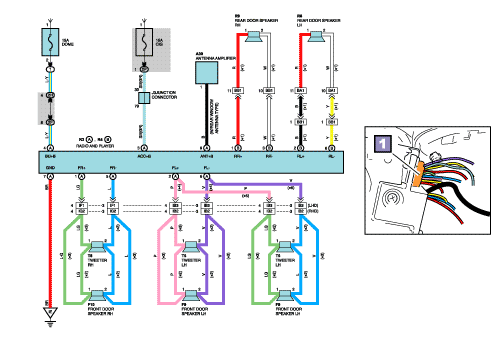

	Refer to the "SYSTEM CIRCUIT" pages in the EWD to confirm the wiring colour of the radio receiver assembly connector.

HINT:
•	The connector illustrations in the "CONNECTOR LIST" pages of the EWD shows the connector on harness side (wiring loom side).
•	Refer to the "HOW TO USE THIS MANUAL" section of the EWD.

(15/2)
