Inspection

Inspect Combination Meter Connector Voltage
Click on the underlined sentence.
  3. Inspect illumination circuit
  (1) Select the voltage measuring function of the electrical tester.

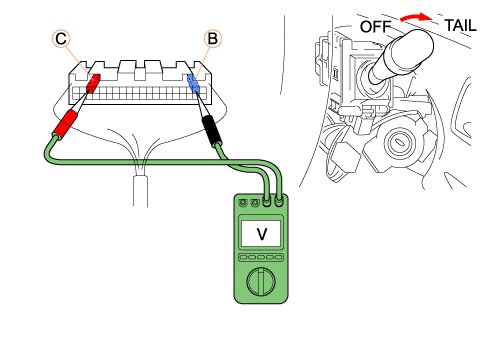

  (2) When turning the light control switch to the TAIL position, measure the voltage change between combination meter connector terminal C and terminal B.

HINT:

(14)
