Inspection

Inspect Combination Meter Connector Voltage
Click on the underlined sentence.
1. Preparation before inspection

  2. Inspect ignition switch power source circuit
  (1) Select the voltage measuring function of the electrical tester

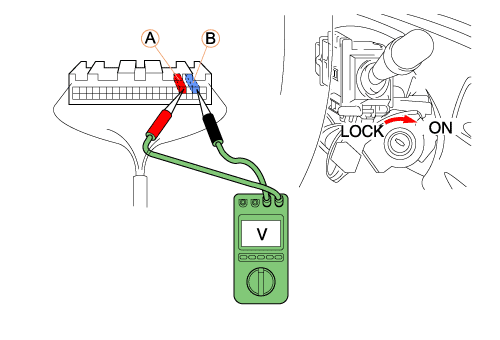

  (2) When turning the ignition switch from the LOCK position to the ON position, measure the change of voltage between
combination meter connector terminal A and terminal B.

HINT:

(13/2)
