Inspection

Inspect Combination Meter Connector
Click on the underlined sentence.



  1. Electrical wiring routing

2. Connector list

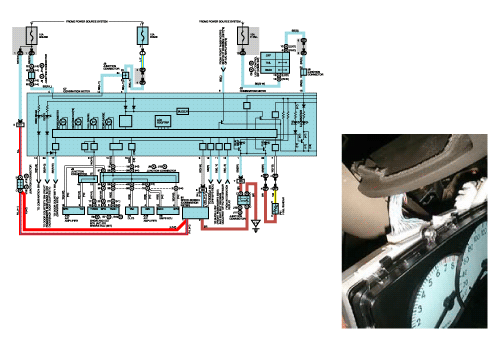

3. System circuit
  Refer to the "SYSTEM CIRCUIT" pages in the EWD to confirm the wiring colour of the combination meter connector harness.

HINT:
•
 The connector illustrations in the "CONNECTOR LIST" pages of the EWD shows the connector on harness side (wiring loom side).
•
 Refer to the "HOW TO USE THIS MANUAL" section of the EWD.

(12/2)
