Instrument Panel 11

PRO TECHNICIAN

Inspection

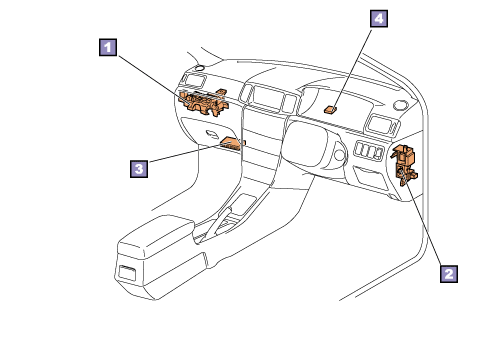

Check Installation Positions of Electric Equipment

Refer to the "RELAY LOCATIONS" pages in the EWD to confirm the installation positions of the electric components in the instrument panel.
	Instrument Panel J/B (Junction Connector)
	Relay Block No.3
	Engine and ECT ECU (A/T) or Engine ECU (M/T)
	EMPS ECU (Vehicle with Electric Motor Power Steering System)

(11)
