Removal

Remove Steering Wheel

Click on the underlined sentence.
2. Remove steering wheel
  (1) Remove the steering wheel set nut.

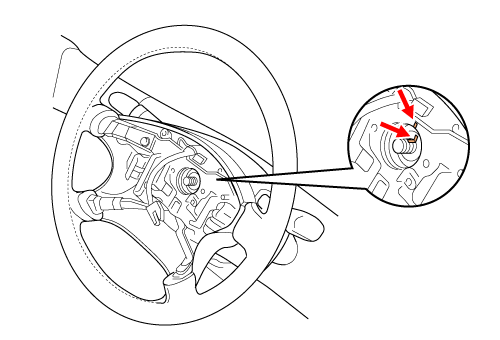

(2) Make matchmarks on the steering wheel and steering main shaft.
HINT:
These marks are used for aligning the positions at the time of installation.
NOTICE:
The spiral cable has a centre mark to assit in maintaining it in the correct position. If the centre mark is not alinged correctly before installing the steering wheel, the cable could be broken when the steering wheel is turned.

(3) Using an SST, remove the steering wheel.

(5/1)
