Installation
Install Headlight Bulb
Click on the underlined sentence.

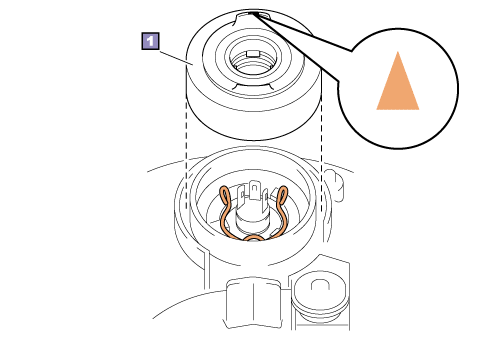

Bulb cover
1.
Install headlight bulb
(1)
Match the bulb tab with the bulb socket notch and fit the tab into the hole.
(2)
Locate the spring to secure the bulb.
(3)
Install the cover with the top mark uppermost when fitted.
NOTICE:
•
If the top mark is not located correctly, water could enter the unit.
•
Do not touch the glass part of the bulb, as any contamination on the bulb glass will shorten the bulb life.
(19/2)
