Installation

Install Headlight Bulb
Click on the underlined sentence.

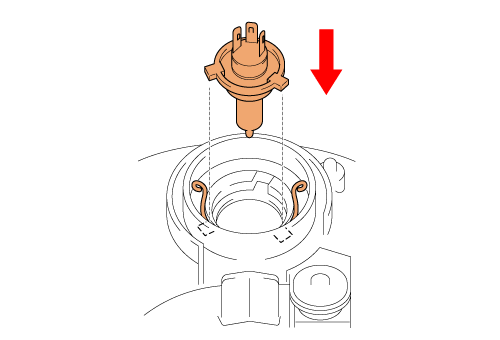

1. Install headlight bulb
  (1) Match the bulb tab with the bulb socket notch and fit the tab into the hole.
HINT:
When replacing the bulb with a new one, be sure to use a bulb of the same wattage.

(2) Locate the spring to secure the bulb.
(3) Install the cover with the top mark uppermost when fitted.
