Inspect Light Control Switch
Click on the underlined sentence.

1. Inspect light control switch
  (1) Set the electrical tester to continuity function.
  (2) Check the continuity between the light control switch terminals when operating the light control switch.

HINT:
•
 TAIL position
•
 HEAD (LOW) position

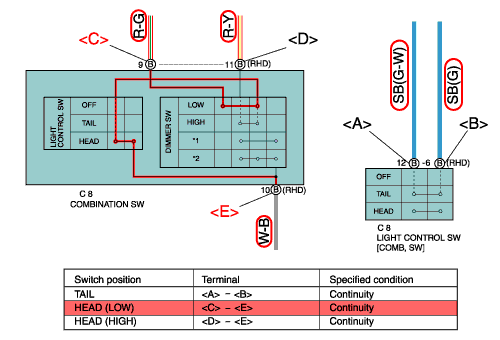

Turning the light control switch to HEAD (LOW) position will allow current to flow between terminal C and terminal E, and the headlights (LOW) will come on.
•
 HEAD (HIGH) position
