Inspection

Inspect Light Control Switch
Click on the underlined sentence.

1. Inspect light control switch
  (1) Set the electrical tester to continuity function.

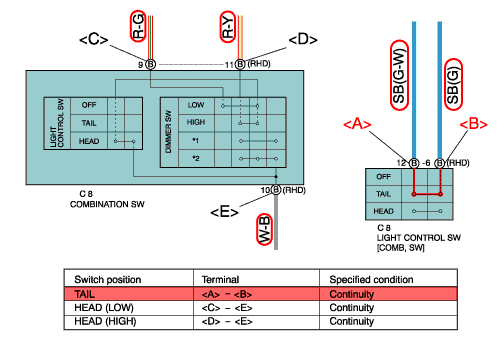

  (2) Check the continuity between the light control switch terminals when operating the light control switch.

HINT:
•
 TAIL position

Turning the light control switch to the TAIL position will allow current to flow between terminal A and terminal B, and the taillights will come on.
•
 HEAD (LOW) position
•
 HEAD (HIGH) position

(14/1)
