| 1. |
Select the resistance measuring function on the electrical tester. |
| |
| 2. |

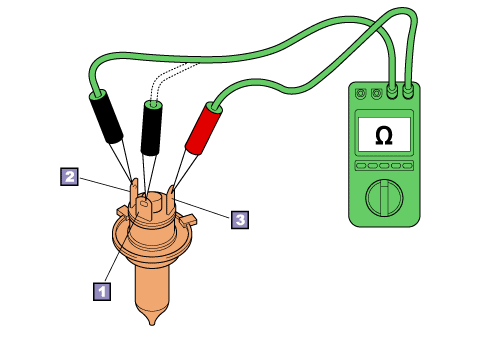

Connect the leads of the electrical tester to the bulb terminals and check for continuity |
| (1) |
Low Beam Side: |
| |
Connect tester leads between terminal 1 and terminal 3. |
| (2) |
High Beam Side: |
| |
Connect tester leads between terminal 2 and terminal 3. |
