PRO TECHNICIAN

Removal

Remove Light Control Switch
Click on the underlined sentence.
Claw


  1. Remove steering column cover
  Remove the retaining screws and the steering column cover.

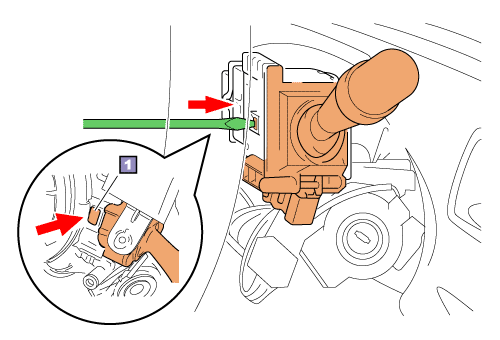

  2. Remove light control switch
(1) Push the claw of the connector and hold the connector body to disconnect the connector.

(2) Disengage the claw and remove the light control switch.
HINT:
Use a suitable size screwdriver to disengage the clip, and remove the light control switch.

(8/2)
