Removal

Remove Light Control Switch
Click on the underlined sentence.

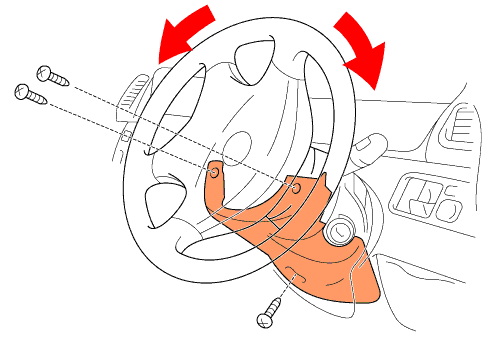

  1. Remove steering column cover
  Remove the retaining screws and the steering column cover.
HINT:
Turning the steering wheel 90 degrees will allow access to the retaining screws.

  2. Remove light control switch
(1) Push the claw of the connector and hold the connector body to disconnect the connector.

(2) Disengage the claw and remove the light control switch.
