PRO TECHNICIAN

Removal

Remove Headlight Bulb

Click on the underlined sentence.
Spring
Headlight bulb

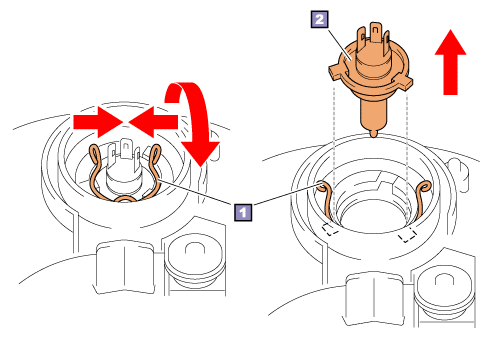

1. Remove headlight bulb
  (1) Remove the rubber cover while pulling the tab.

(2) Remove the spring retaining the bulb and remove the bulb.

NOTICE:
Any contamination on the bulb glass will shorten the bulb life, so do not touch the glass part of the bulb.
Leaving the bulb removed for a long time could allow foreign matter or moisture to get into the lens. Therefore replace the bulb imediately or cover the bulb socket.

(7/1)
