Removal

Remove Fender Liner
Click on the underlined sentence.
1. Remove fender liner
  (1) Apply masking tape to prevent damage during front bumper cover removal.
(2) Remove the liner mounting screws and clips (at the front half of wheel arch).
(3) Ease away the fender liner.

NOTICE:
•
It is necessary ease away the fender liner of some models with headlight mounting nuts behind the fender liner.
•

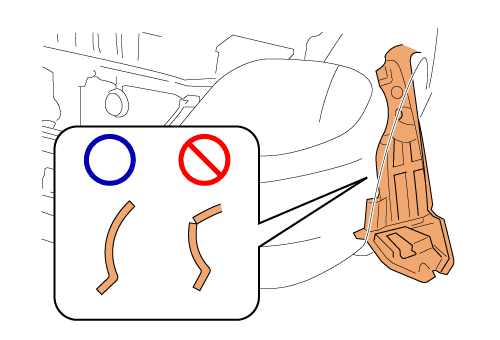

In easing the fender liner away, ensure that it is not creased or damaged as this will prevent correct fitment during installation.

(4/2)
