Removal

Remove Radiator Grille and Front Bumper Cover
Click on the underlined sentence.
Claw
Bolt
Screw

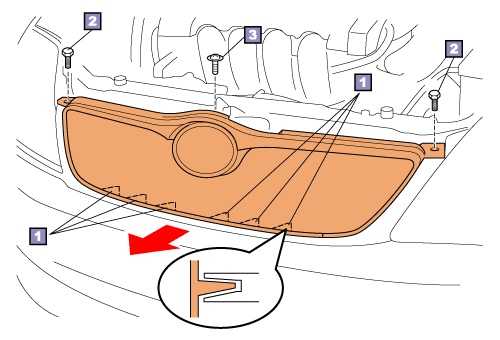

  1. Remove radiator grille
  (1) Remove the bolts and screw.
  (2) Disengage the claws and the radiator grille.

2. Remove front bumper cover
  (1) Remove the clips and bolts.
  (2) Disengage the hook and the front bumper cover.
