Components and Construction
|
Construction
|
|
|
| 4. |
Rectifier
|
| (1) |
The rectifier performs full-wave rectification to convert the three-phase alternating current generated in the stator coils into direct current using six diodes (or eight diodes on alternators using neutral-point diodes). |
| (2) |

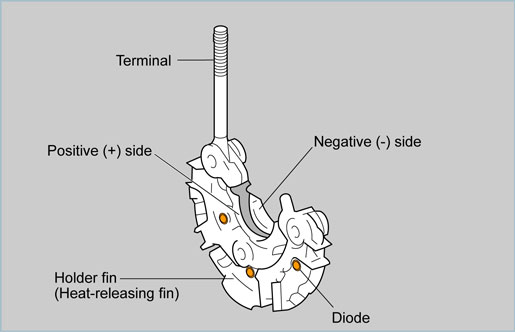

The rectifier consists of an output terminal, holder fin (heat-sink) and diodes. The two-layer construction of the holder fin improves heat radiation and allows for a compact rectifier. |
HINT:
The diodes used for rectification produce heat as the current passes through them. However, because the elements of the diode itself (semi-conductor material) are sensitive to heat, excessive heat build-up will cause poor rectification and possible diode failure. Therefore, the holder fin (heat-sink) is required to provide a large surface area to absorb and release this heat. |
|
(19)
|
|
