Outline.
|
Alternator with Neutral-Point Diodes
|
|
|
| 1. |

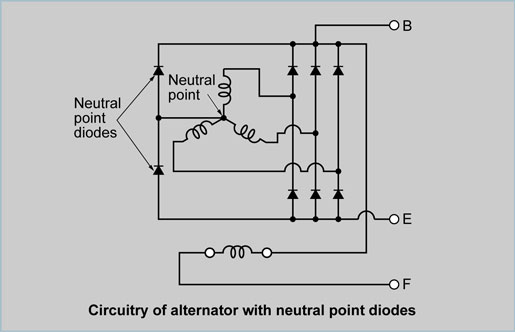

Circuitry and construction
|
| In order to add the potential variation at this neutral point to the DC voltage output by the alternator with neutral-point diodes, two rectification diodes are provided between output terminal (B) and ground (E) and connected to the neutral point. These diodes are installed in the rectifier holder. |
|
(13)
|
|
