2. Construction of charging system and flow of electricity
(1) Construction of charging system
Charging system mainly consists of the following devices.
Alternator
Regulator (built in the alternator)

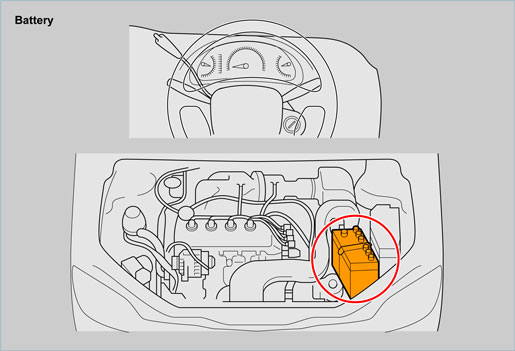

Battery
This is a power source when the engine stops and it supplies electricity to the electric devices to start the engine or when the alternator does not generate electricity. However, electricity generated by the alternator is charged to the battery once the engine starts running.
Charge warning light
Ignition switch
