2. Construction of charging system and flow of electricity
(1) Construction of charging system
Charging system mainly consists of the following devices.

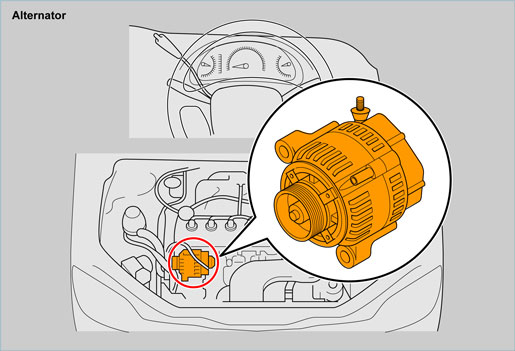

Alternator
While the engine is running, this generates enough electricity to operate any of the electric devices in use as well as charging the vehicles’ battery.
Regulator (built in the alternator)
Battery
Charge warning light
Ignition switch

(2/1)
