Alternator Overhaul 21

PRO TECHNICIAN

Installation

Connect Alternator cable and connector

Click on the underlined sentence.

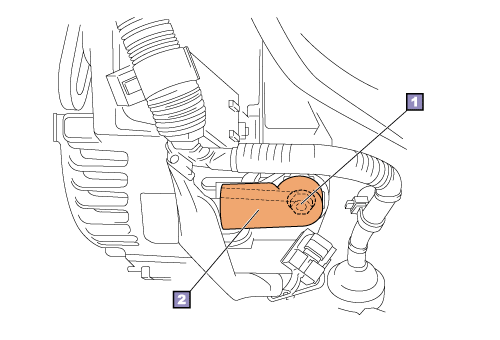

	Set nut
	Shot-circuit prevention cover

1.	Connect the alternator cable
	(1)	Correctly align and connect the alternator cable so as not to damage the alternator terminal.

	(2)	Install and torque set nut.

	(3)	nstall the short-circuit prevention cover..
HINT: As the alternator cable is wired directly from the battery, a terminal short-circuit prevention is a necessity.
.
2.	Connect alternator connector

(50)
