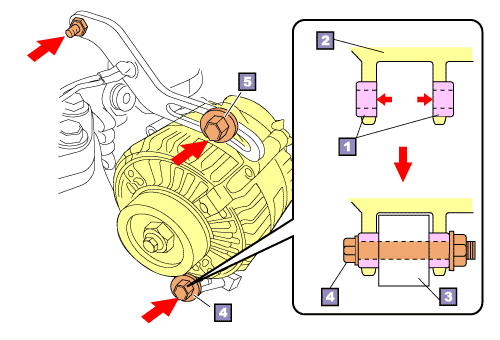

Collar |
|
|
Alternator |
|
|
Bracket (Engine side) |
 |
Through bolt (A) |
 |
Bolt (B) |
|
|
| 1. |
Install alternator |
| |
(1) |
Position the collars to ensure the inner surfaces are flush with the inner sufaces of the bracket (fitting side). |
| |
| |
(2) |
Temporarily install the alternator by installing through bolt (A). |
| |
| |
(3) |
Temporarily install bolt (B). |
| |
|
(4) |
Install the drive belt |
| |
| |
(5) |
Gently lever the alternator using a hammer handle or suitable lever to adjust the tension of the drive belt. |
| |
| |
(6) |
First tighten through bolt (A), then bolt (B) to secure the alternator. |
|
