Reassembly

For pulleys with one-way clutches
Click on the underlined sentence.
SST (A) (Alternator rotor shaft wrench)
SST (B) (Alternator pulley wrench)
For pulleys with one-way clutches, hold the shaft and turn the pulley to install the pulley.

1. Install alternator pulley

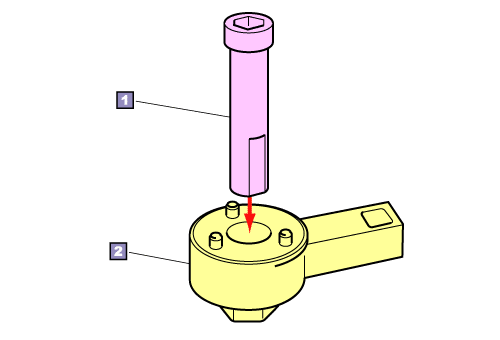

  (1) Set SST (A) and SST (B).

(2) Insert SST (A) into the shaft and fit each of the three tabs of SST (B) into each of the three holes of the alternator pulley.

(3) Hold the tip (chamfer part) of SST (A) in a vise.

(4) Turn the pulley with SST (B) to tighten the pulley and install the cap.


(47/2)
