Reassembly

Install Alternator Pulley
Click on the underlined sentence.

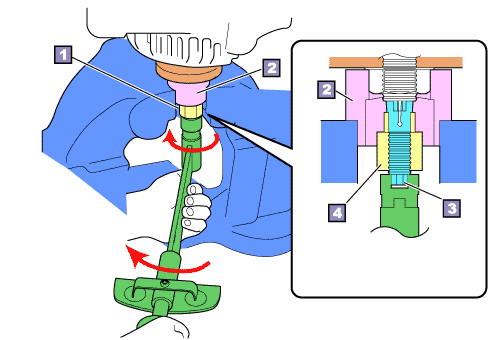

SST1 (Alternator rotor shaft wrench)
SST2 (Alternator pulley set nut wrench)
SST1-A (Alternator rotor shaft wrench-A)
SST1-B (Alternator rotor shaft wrench-B)
  (3) Turn SST1-A counterclockwise to tighten the pulley lock nut and then remove the alternator from SST2.

(4) While holding SST1-B, turn SST1-A clockwise to loosen itself, and remove SST1-A and SST1-B from the alternator.
Make sure that the pulley turns smoothly.

REFERENCE:
•
 For pulleys with one-way clutches

(47)
