Reassembly

Components
Click on the underlined sentence.

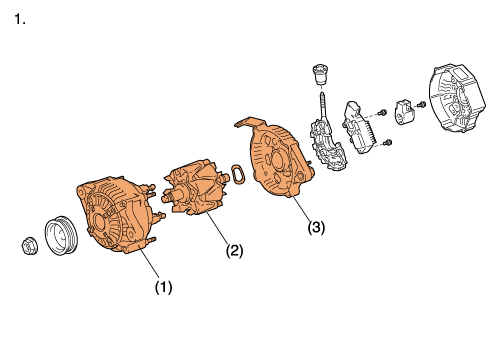

  1. Install alternator rotor assembly
  (1) Drive end frame
  (2) Rotor
  (3) Rear end frame

2. Install alternator holder with rectifier

3. Install alternator regulator assembly

4. Install alternator brush holder assembly

5. Install alternator pulley

(43)
