Disassembly
Remove Alternator Pulley
Click on the underlined sentence.

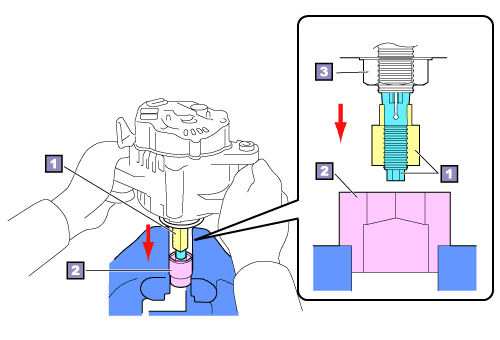

SST1 (Alternator rotor shaft wrench)
SST2 (Alternator pulley set nut wrench)
Pulley lock nut
When loosening the pulley lock nut it is necessary to hold the nut with SST and turn the shaft to remove the nut.
1.
Remove alternator pulley
(1)
Install SST1-A and SST1-B on the tip of the pulley shaft.
Tighten SST1-A and SST1-B with the specified torque and hold SST1-A against the pulley shaft.
Torque:
39.2 N-m (400kgf-cm)
(2)
Hold the SST2 in a vise and then with SST1-A and SST1-B installed on the alternator, insert the pulley lock nut into the hexagonal part of SST.
