Collar |
 |
Alternator |
 |
Bracket (Engine side) |
|
|
| 1. |
Remove alternator |
|
(1)
|
Loosen the alternator installation bolts and remove the drive belt. |
| NOTICE: |
| Pulling the drive belt to move the
alternator will damage the belt. |
| |
| |
(2)
|
Remove all the alternator installation bolts and remove the
alternator. |

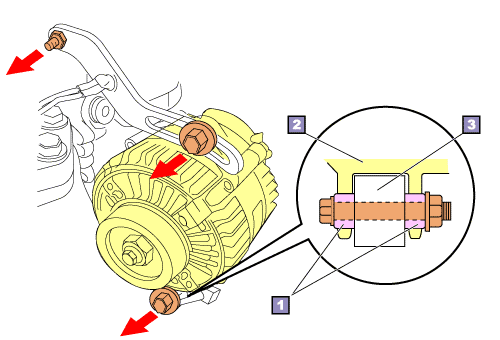

| HINT: |
| Since the alternator installation bracket (2) holds collars for positioning (1) firmly even after the retaining bolt is removed, it is necessary to rock the alternator up and down for removal. |
|
