| (2) |

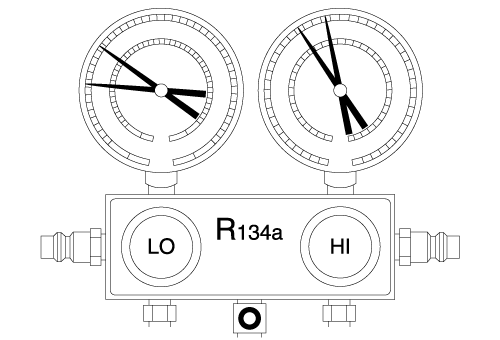

Start the engine and set the vehicle conditions as described earlier and allow the manifold gauges to stabilize before checking the pressures. |
| Specified pressure indication: |
| |
• |
Low-pressure side |
0.15-0.25 MPa
(1.5-2.5kgf/cm², 21-36 psi) |
| |
• |
High-pressure side |
1.37-1.57 MPa
(14-16 kgf/cm², 199-228 psi) |
| |
| HINT: |
| The pressure indication of the manifold gauge may vary within the above ranges depending on the outside air temperature. |
| |
| REFERENCE: |
|
•
|
Indicated pressure is outside specified range. |
|
