Inspect Refrigerant Charge Amount

Check Refrigerant Charge Amount
Click on the underlined sentence.
3. Check using a manifold gauge set
Use a manifold gauge set to inspect the refrigerant pressure.

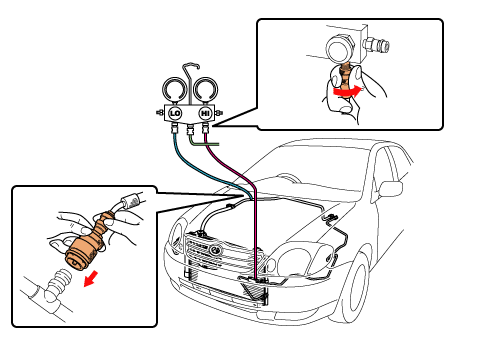

(1) Connect the manifold gauge set.

HINT:
During insection do not connect to the centre (green) manifold gauge charging outlet.
