Removal

Remove Engine Room Components
Click on the underlined sentence.

Engine hanger
Engine sling device

6.
Separate engine mount LH
(1)
Install engine hangers on the engine and then attach them to the chain block via the engine sling device.
HINT:

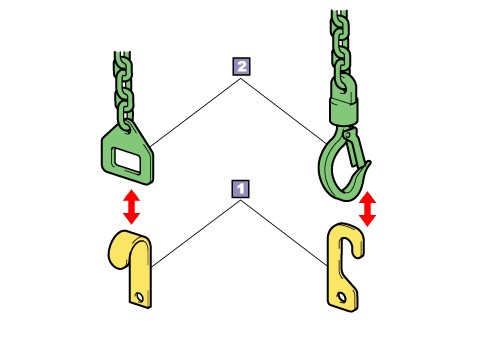

There are two types of engine hangers. Install the appropriate engine sling device according to the type of engine hanger to be used.

(2) With light tension on the chain, remove the pass-through bolt, mounting bolts and engine mount LH.

(3) Remove the bracket mounting bolts and engine mounting bracket from the transaxle.

CAUTION:
•
If the chain block is raised too high, the vehicle could be raised off of the lift creating a very dangerous situation.
•
If uniform tension is not applied to the chains, the engine will tilt significantly, creating a very dangerous situation.
REFERENCE:
•Engine support fixture

(12)
