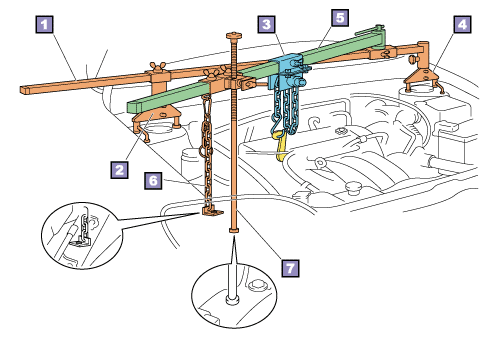

Main beam |
|
|
Main beam support No.2 |
|
|
Chain block |
|
|
Main beam support No.1 |
 |
Sub-beam |
 |
Chain for holding sub-beam |
 |
Sub-beam support shaft |
|
|
|
|
This tool supports an engine when the engine
or transaxle is removed or installed.
Install the engine support fixture on the suspension tower to support the engine
with the chain block.
Since the centre of gravity on the suspension tower offsets that of the engine, the sub-beam allows the engine to be supported stably.
|
| |
|
NOTICE:
Using the fender to support the engine support fixture could cause the body to be damaged.
|
|
