Clutch hub assembly |
|
|
Shifting key |
|
|
Clutch hub |
|
|
Key spring |
|
|
|
|

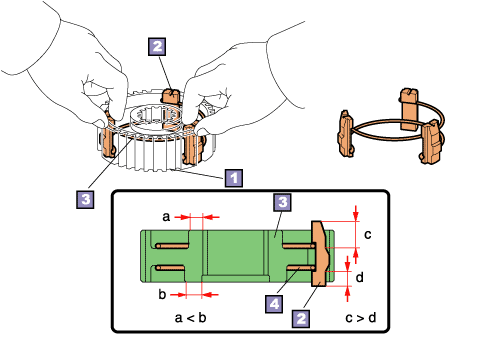

1.
|
Install clutch hub
|
|
(1)
|
The clutch hub and shifting key
both have a direction. Make sure to note these settings before
installing the parts.
|
|
(2)
|
Install the key spring on the clutch hub so
that the openings of the 2 key springs do not face in the same direction, and
secure the shifting key.
|
| |
|
HINT:
Hook the claw of the key spring to the shifting
key.
|
| |
|
(3)
|
Make sure of the installation
direction and align the shaft spline with the clutch to install
it.
|
|
