Reinstall Transmission 10

PRO TECHNICIAN

Reassembly

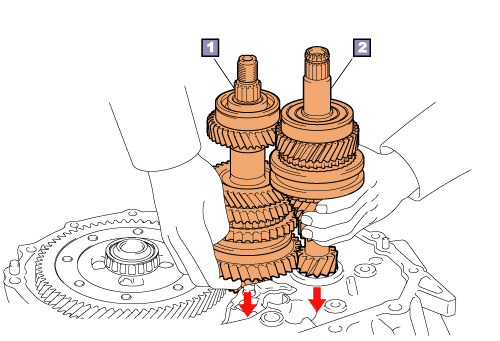

Install Input and Output Shafts

	Output shaft
	Input shaft

To install the input and output shafts, first engage the gears. Then align them with the differential ring gear and put the shaft straight on.

HINT:
•	Forcing the input and output shafts onto the case at a slant will interfere with the bearing and may damage both the bearing and shaft itself.
•	Apply gear oil to each gear and sliding part before assembling parts.

(10)
