Reinstall Transmission 06a

PRO TECHNICIAN

Reassembly

Install Bearing and Oil Seal

Click on the underlined sentence.

	SST (Handle and replacer)
	New oil seal

2.	Install oil seal
	Use SST and hammer to install the following oil seals:

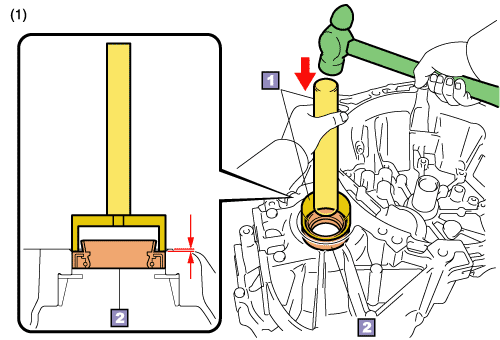

	(1)	Install the front transaxle case oil seal.

	(2)	Install the transmission case oil seal.

	(3)	Install the transaxle case oil seal.
HINT:
Install the lip of oil seal facing transmission case.

(3/3)
