Construction and Function of Gear Shifting Mechanisms.
|
Gear Shifting Mechanisms
|
|
|
| 7. |

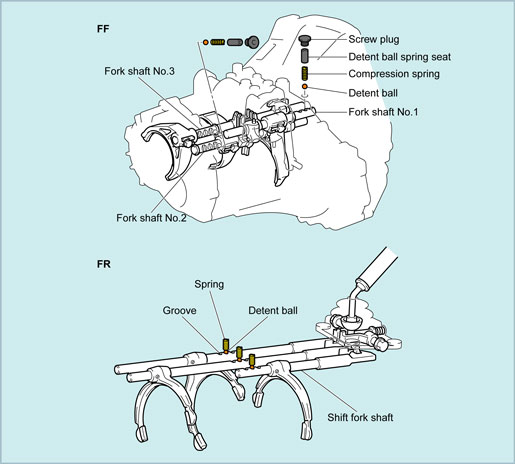

Shift detent mechanism
|
There are three grooves on each shift fork shaft, and the detent ball is pushed into the groove by the spring when shifting gears.
This not only prevents the transaxle from jumping out of gear, but also gives the driver a better feel for the gear engagement. |
|
|
(27)
|
|
