Construction and Function of Gear Shifting Mechanisms.
Gear Shifting Mechanisms
Click on the underlined sentence.
6.

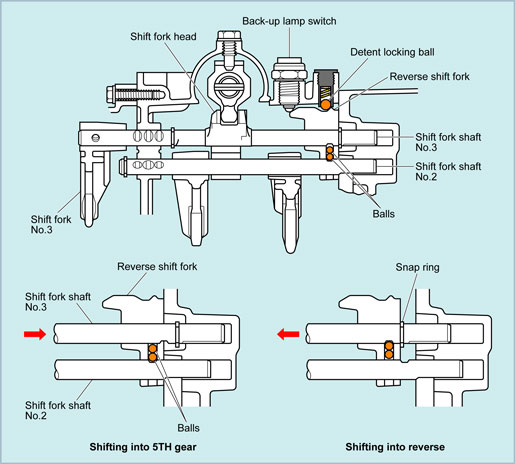

Reverse one-way mechanism
The reverse idler gear moves only when the transaxle is shifted into reverse. When it is shifted into 5th gear, the reverse idler gear is kept in the neutral position.
