Reverse idler gear shaft |
|
|
Micrometer |
|
|
|
|
3.
|
Visually inspect reverse idle gear shaft
|
| Verify whether there are any scratches
or physical damage on the contact surfaces of the shaft. |
| |
|
4.
|

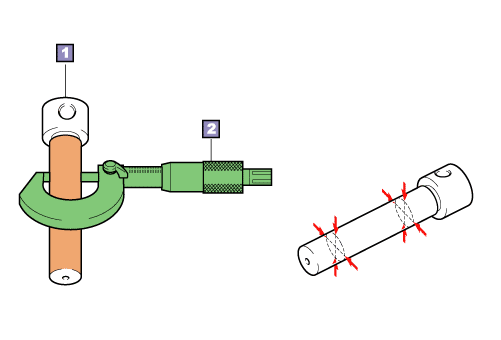

Measure outer diameter of reverse idle gear shaft
|
|
Use a micrometer to measure the outer diameter
of the shaft by measuring the circumference over several locations.
|
| |
HINT:
Make sure measurement is carried out on area of shaft in contact with rotating parts ie area which will be subject to greatest wear. |
|
