Disassembly

Remove Shift Fork and Shift Fork Shaft
Click on the underlined sentence.

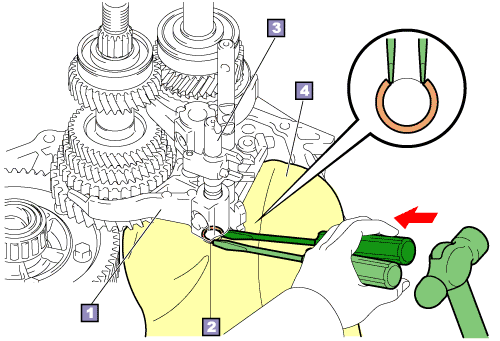

Gear shift fork No.1 (1st and 2nd gears)
Shift fork shaft snap ring
Gear shift fork shaft No.1 (1st and 2nd gears)
Cloth

2.
Remove shift fork and shift fork shaft
Remove the shift fork and shift fork shaft in the following sequence:
(1)
Gear shift fork shaft No.2
(3rd and 4th gears)

(2)
Gear shift head No.1
(3rd and 4th gears)

(3)
Gear shift fork shaft No.1
(1st and 2nd gears)


Remove gear shift fork shaft No.1 snap ring
    Use two penetration screwdrivers and a hammer to remove the gear shift fork shaft No.1 snap rings.

(4)
Gear shift fork No.1
(1st and 2nd gears)

(5)
Gear shift fork shaft No.3 with reverse shift fork
(5th and Reverse gears)

(6)
Gear shift fork No.2
(3rd and 4th gears)

(18)
