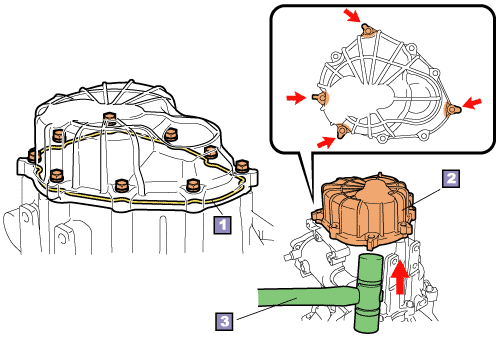

Seal packing |
|
|
Transmission case cover |
|
|
Plastic hammer |
|
|
|
|
Note that the transmission case cover is bonded
to the transmission case with seal packing.
|
| |
|
1.
|
Remove transmission case cover bolts
|
|
To distribute the tension evenly when removing
the transmission case cover bolts, loosen and remove the bolts in a diagonal sequence.
|
| |
|
2.
|
Remove transmission case cover
|
|
First loosen the case cover by tapping the case
cover ribs with a plastic hammer. Then remove the transmission case cover.
|
|
